ERLO Units
Roller units
Roller units CA-40
- For modular assembly
- Stroke: 320/400 mm
- Spindle: 24000 N
- Push force: 40 m/min
More product information:
| Features | CA 40 |
|---|---|
| Stroke | 320 mm |
| Push force | 24000 N |
| Feed speed | 40 m/min |
| Maximum moment (Mx) | 2320 Nm |
| Maximum moment (My) | 1620 Nm |
| Spindle | Ø 32 x 10 |
| Weight (without motor) | 250 kg |
Settings system
| CA.40 | S | PR | 700 | 0 |
|---|---|---|---|---|
| 1 | 2 | 3 | 4 |
1 - Stroke
- S: Stroke 320 mm
- L: Stroke 400 mm
2 - Protection
- PR: Protection with wiper

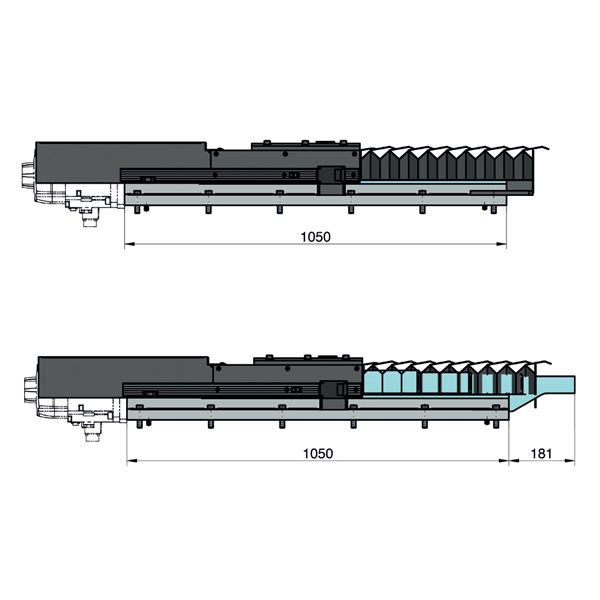

- PF: Protection with bellows
- PT: Protection with telescopic guard
- NOTE: Protection with wiper not available for 400mm-stroke unit.
3 - Transmission
| Ø Flange | Ø Shaft | |
|---|---|---|
| 700 | Ø 95 | Ø 24-Ø19 |
| 800 | Ø114,3 | Ø 35-Ø24 |
| 900 | Ø 130 | Ø 32-Ø24 |
4 - Micrometric scale
- 0: Roller unit without micrometric scale
- R: Roller unit with micrometric scale to the right
- L: Roller unit with micrometric scale to the left
