Machining units
Machining units CG.50
- For modular assembly
- Cone: ISO 50 / BT 50 / HSK 100
- Drilling capacity: Ø80
- Tapping capacity: M48
More product information:
| Features | CG 50 |
|---|---|
| Main cone | ISO 50 BT 50 HSK 100 |
| Axial load capacity | 22000 N |
| Radial load capacity | 18500 N |
| Maximum torque | 1500 Nm |
| Maximum RPM | 6000 rpm |
| Drilling capacity (600 N/mm2) | Ø80 |
| Tapping capacity (600 N/mm2) | M48 |
| Milling capacity (600 N/mm2) | Yes |
| Lubrification | Grease (free maintenance) |
| Cone pressurisation | Maximum 2 bars |
| Concentricity | 0,01 mm |
| Weight (without motor) | 100 KG |
| Automatic tool clamp | Pneumatic release |
| Minimum unclamping pressure: 3.3 bar | |
| Tool clamping force: 12 kN (DIN 69871) | |
| Tool clamping force: 10.5 kN (MAS 403 BT 45°) | |
| Rotary joint | 1 coolant passage channel (max. 60μm) |
| Cutting fluid, oil, MQL | |
| Max. pressure 70 bar (MQL 10 bar) |

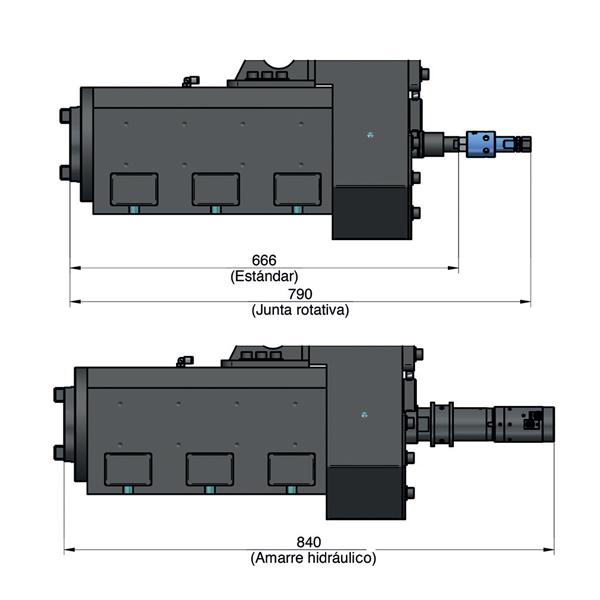

Settings system
| CG.50 | 501 | 0 | - | 1 |
|---|---|---|---|---|
| 1 | 2 | 3 | 4 |
1 - Tool clamp
- AM: Mechanical clamp DIN 2080
- AA: Hydraulic clamp MAS-403 BT (45º)
- AB: Hydraulic clamp DIN 69871/69872
2 - Transmission
| R.P.M | TORQUE (Nm.) | Transmission | Motor | |
|---|---|---|---|---|
| 501 | 333 | 444 | 1/3 | 15 kW 1000 r.p.m. |
| 502 | 500 | 429 | 1/3 | 22 kW 1500 r.p.m. |
| 503 | 750 | 286 | 1/2 | 22 kW 1500 r.p.m. |
| 504 | 1000 | 213 | 1/1 | 15 kW 1000 r.p.m. |
| 505 | 1500 | 143 | 1/1 | 22 kW 1500 r.p.m. |
| 506 | 3000 | 71 | 1/1 | 22 kW 3000 r.p.m. |
3 - Interior cooling
- 0: Head without interior cooling
- 1: Head with interior cooling
- *NOTE: For units with automatic tool clamping, the tool's internal cooling system is included by default.

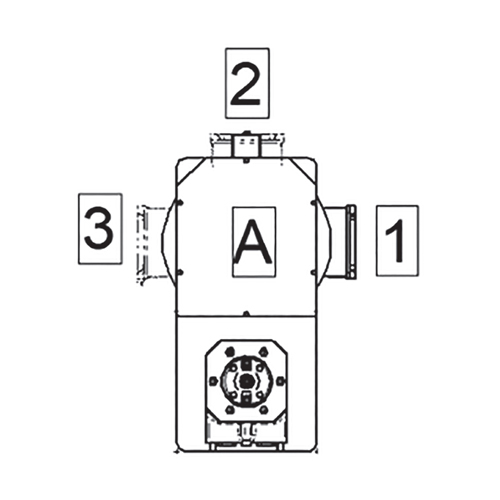

4 - Orientation of the motor terminal box
- 1, 2, 3
