ERLO Units
Machining units
Machining units CG.40
- For modular assembly
- Cone: ISO 40 / BT 40 / HSK 63
- Drilling capacity: Ø50
- Tapping capacity: M33
More product information:
| Features | CG 40 |
|---|---|
| Main cone | ISO 40 BT 40 HSK 63 |
| Axial load capacity | 8400 N |
| Radial load capacity | 4700 N |
| Maximum torque | 400 Nm |
| Maximum RPM | 6000 rpm |
| Drilling capacity (600 N/mm2) | Ø50 |
| Tapping capacity (600 N/mm2) | M33 |
| Milling capacity (600 N/mm2) | Yes |
| Lubrification | Grease (free maintenance) |
| Cone pressurisation | Maximum 2 bars |
| Concentricity | 0,01 mm |
| Weight (without motor) | 100 KG |
| Rotary joint | Pneumatic release |
| Minimum unclamping pressure: 3.3 bar | |
| Tool clamping force: 12 kN (DIN 69871) | |
| Tool clamping force: 10.5 kN (MAS 403 BT 45°) | |
| Automatic tool clamp | 1 coolant passage channel (max. 60μm) |
| Cutting fluid, oil, MQL | |
| Max. pressure 70 bar (MQL 10 bar) | |
| Encoder | 4,096 pulses |
| A+, B+, R+, A-, B-, R (zero pulse) |

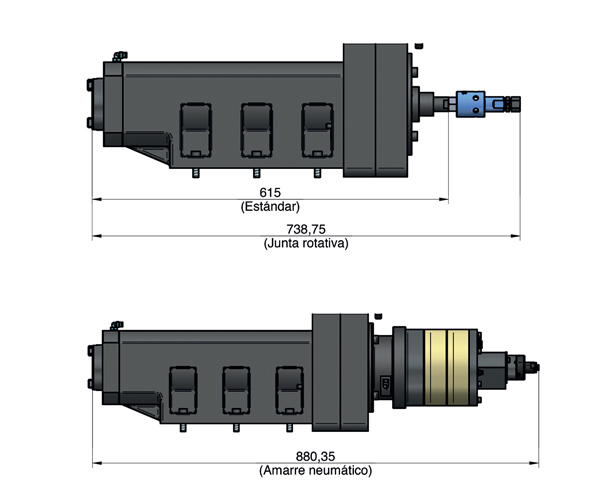

Settings system
| CG.40 | AM | 601 | 0 | 0 | - | B | 1 |
|---|---|---|---|---|---|---|---|
| 1 | 2 | 3 | 4 | 5 | 6 |
1 - Tool clamp
- AM: Mechanical clamp
- AA: Pneumatic clamp MAS 403-1982 BT/PT2 (45º)
- AB: Pneumatic clamp DIN 69871/69872
2 - Transmission
| R.P.M | TORQUE (Nm.) | Transmission | Motor | |
|---|---|---|---|---|
| 601 | 322 | 163 | 1/3 | 5,5 kW 1000 r.p.m. |
| 602 | 483 | 109 | 1/2 | |
| 603 | 643 | 82 | 1/1,5 | |
| 604 | 965 | 54 | 1/1 | |
| 605 | 1448 | 36 | 1,5/1 | |
| 606 | 483 | 148 | 1/3 | 7,5 kW 1500 r.p.m. |
| 607 | 725 | 99 | 1/2 | |
| 608 | 967 | 74 | 1/1,5 | |
| 609 | 1450 | 49 | 1/1 | |
| 610 | 2175 | 33 | 1,5/1 | 11 kW 1500 r.p.m. |
| 611 | 483 | 113 | 1/3 | |
| 612 | 725 | 75 | 1/2 | |
| 613 | 967 | 113 | 1/1,5 | |
| 614 | 1450 | 75 | 1/1 | |
| 615 | 2175 | 50 | 1,5/1 |
3 - Encoder
- 0: Head without encoder
- 1: Head with encoder voltage 5VDC±5%TTL/RS42
- 2: Head with encoder voltage 10…30VDC, HTL/PP
- *NOTE: Encoder not available for head with mechanical clamp
4 - Interior cooling
- 0: Head without interior cooling
- 1: Head with interior cooling
- *NOTE: For units with automatic tool clamping, the tool's internal cooling system is included by default.
5 - Pulley housing orientation
- A, B, C, D
6 - Orientation of the motor terminal box
- 1, 2, 3
